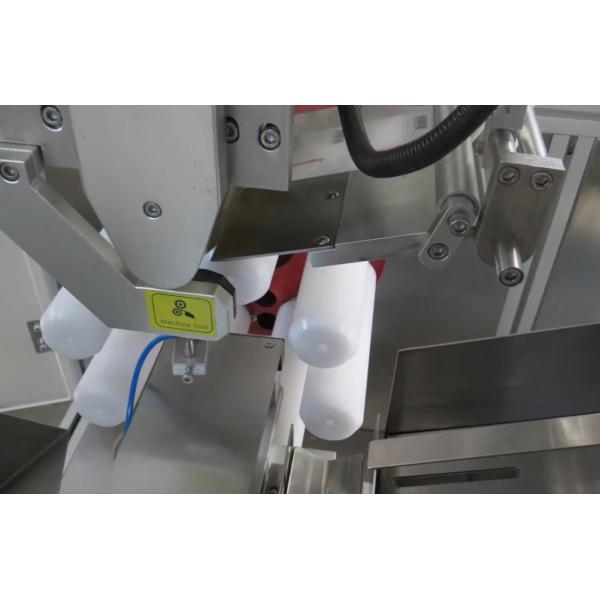

Automatic Round Soft Tube Labeling Machine
The round soft tube labeling machine is designed for precise labeling of circular soft tubes and hollow hoses, featuring accurate positioning for stable and consistent label application.
It is widely used in cosmetics, daily chemicals, personal care, food, and pharmaceutical packaging industries.
Built to handle soft, flexible, and transparent tubes, this machine effectively prevents label wrinkling, bubbling, and feeding issues, ensuring smooth and high-quality labeling performance for modern production lines.
Key Feature
1.Wide Application – Suitable for cosmetic, skincare, shampoo, personal care, and food tubes, designed for global market requirements.
2.High Precision & Speed – Supports roll labeling, circumferential and dual-label positioning, reaching up to 30 positioned labels/min or 50 non-positioned labels/min.
3.Smart PLC Control – Touchscreen PLC system with up to 50 preset parameters and quick 10-minute changeover for different tube sizes.
4.Stable Operation – Horizontal feeding system with roller conveyor ensures smooth transport, anti-blocking design, and GMP-compliant production.
5.Safe & Certified – Strong frame with safety cover and advanced sensors, CE-certified with optional label missing detection for reliable operation.
| Model / technical parameters |
NP-RL |
| Labeling speed (pcs/min) |
40-150
(relate to material and label size) |
| Labeling accuracy(mm) |
±1.0mm
(material and label sizes are not counted in) |
| Label size(mm) |
(L)20-280mm (H)30-144mm |
| Material size (mm) |
Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) |
φ76mm |
| Roll outer diameter(mm) |
Max:Φ350mm |
| Machine size (mm) |
(L)2000*(W)850*(H)1450(mm) |
| Power supply |
AC220V 50Hz/60Hz 1500W |
Product Details
Optional Features and Parts
Coding Machine
The thermal coding unit prints key information such as production date, expiry date, and batch number. It is fully synchronized with the labeling system to improve efficiency and traceability.
Inkjet Printer
Compatible with mainstream inkjet systems, it allows accurate printing at specific label positions and integrates smoothly with the labeling line for stable performance.
Universal Sensor
Using high-precision photoelectric sensors imported from Germany, it can accurately detect transparent and standard labels, ensuring stable positioning and reducing labeling errors.
Reader System
Supports QR codes, barcodes, and other data formats, enabling product data collection, traceability, and improved quality management.
FAQ: Round Soft Tube Labeling Machines
Q1: What is a round tube labeling machine?
A round tube labeling machine is automated equipment designed to apply labels accurately onto cylindrical soft tubes, such as cosmetic, pharmaceutical, and adhesive packaging. It delivers precise 360° wrap-around labeling with high speed and consistency.
Q2: What should I consider when selecting a machine?
Key factors include tube diameter and length range, required labeling speed, label material type (paper, PVC, PP, etc.), compatibility with existing production lines, and labeling accuracy requirements (e.g., ±0.5 mm).
Q3: How does the machine handle different tube sizes?
It uses adjustable mechanisms and quick-change parts, allowing fast switching between different tube sizes while minimizing downtime and maintaining production efficiency.
